6. AIR CONDITIONER
1) BLOWER MOTOR CONTROL CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| G203 | I.P | Below Ashtray |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
2) A/C COMPRESSOR CONTROL CIRCUIT : SIRIUS D42
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Driver Leg Room |
| G203 | I.P | Below Ashtray |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S201

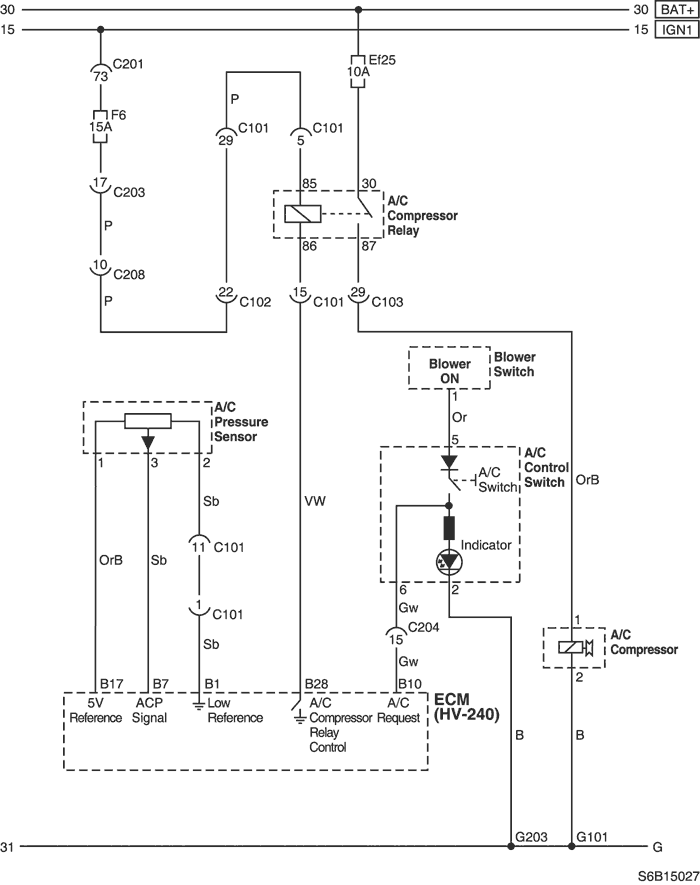

3) A/C COMPRESSOR CONTROL CIRCUIT : HV-240
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Driver Leg Room |
| C208 (20 Pin, Yellow) | Front - I.P | Front TCM |
| G101 | Front | Behind Right Headlamp |
| G203 | I.P | Below Ashtray |

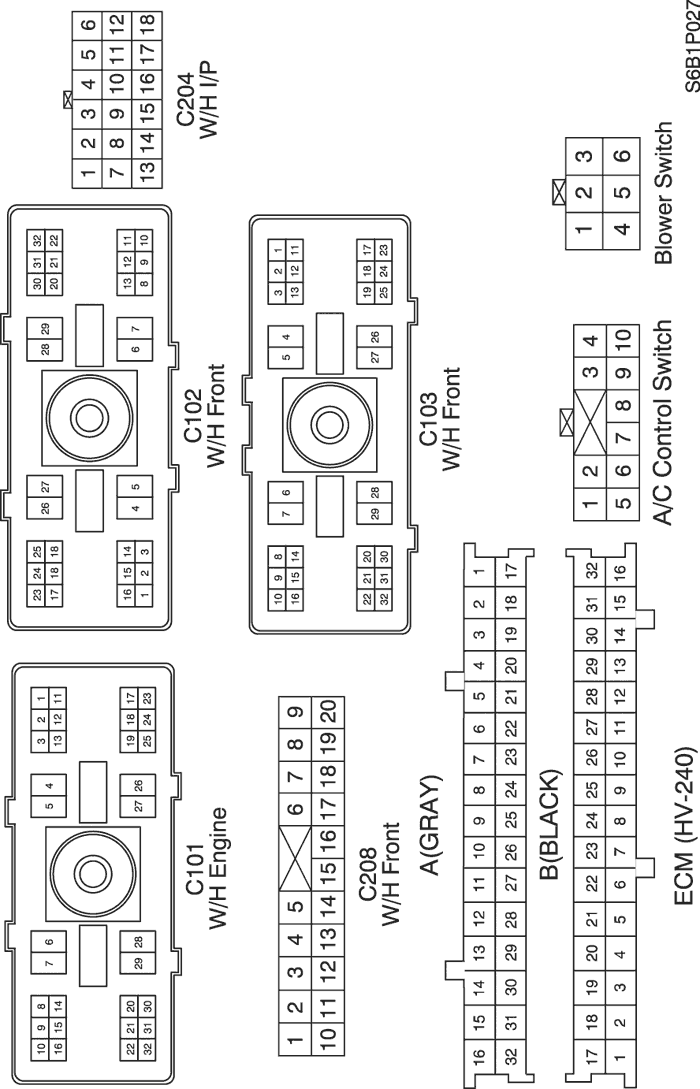

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

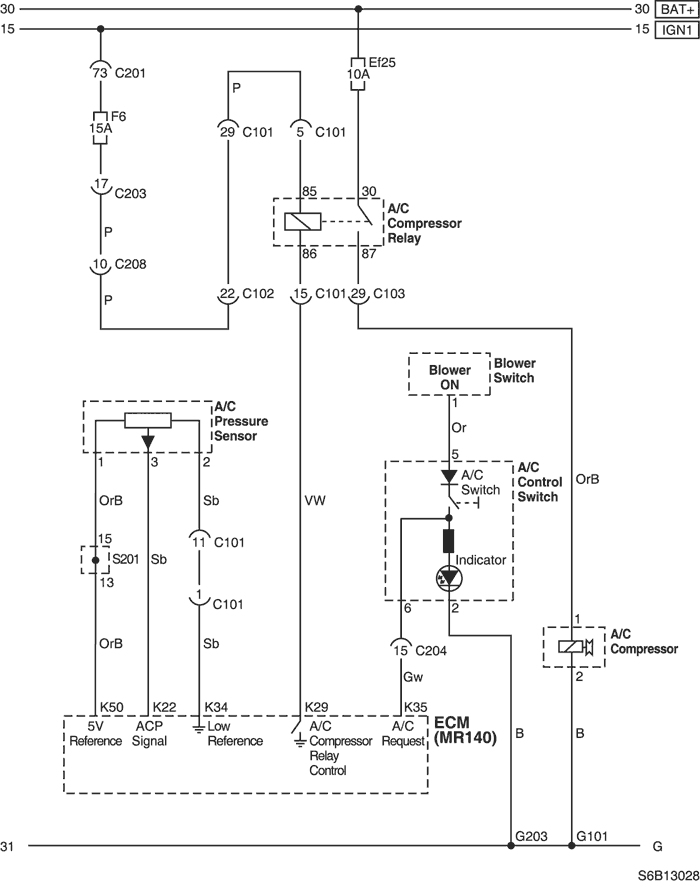

4) A/C COMPRESSOR CONTROL CIRCUIT : MR-140
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Driver Leg Room |
| C208 (20 Pin, Yellow) | Front - I.P | Front TCM |
| G101 | Front | Behind Right Headlamp |
| G203 | I.P | Below Ashtray |

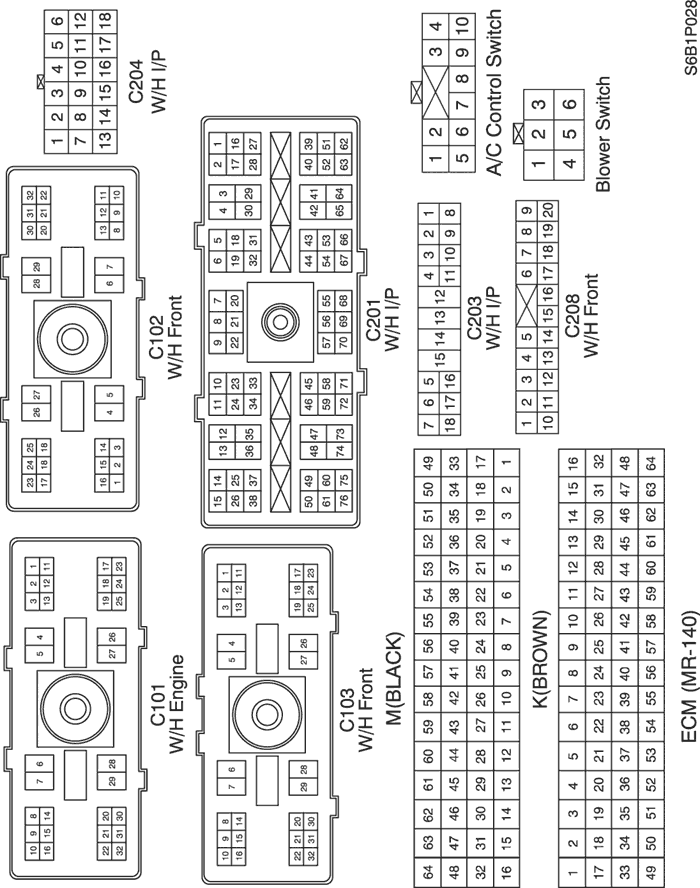

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S201

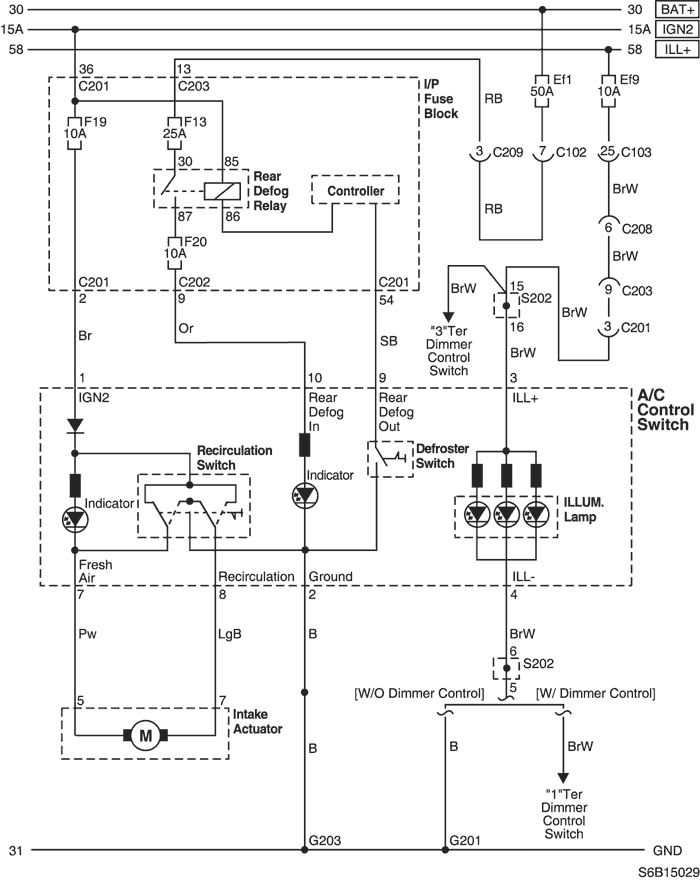

5) POWER, GROUND AND INTAKE ACTUATOR CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C202 (20 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| G201 | I.P | Upper Mirror Control Switch |
| G203 | I.P | Below Ashtray |

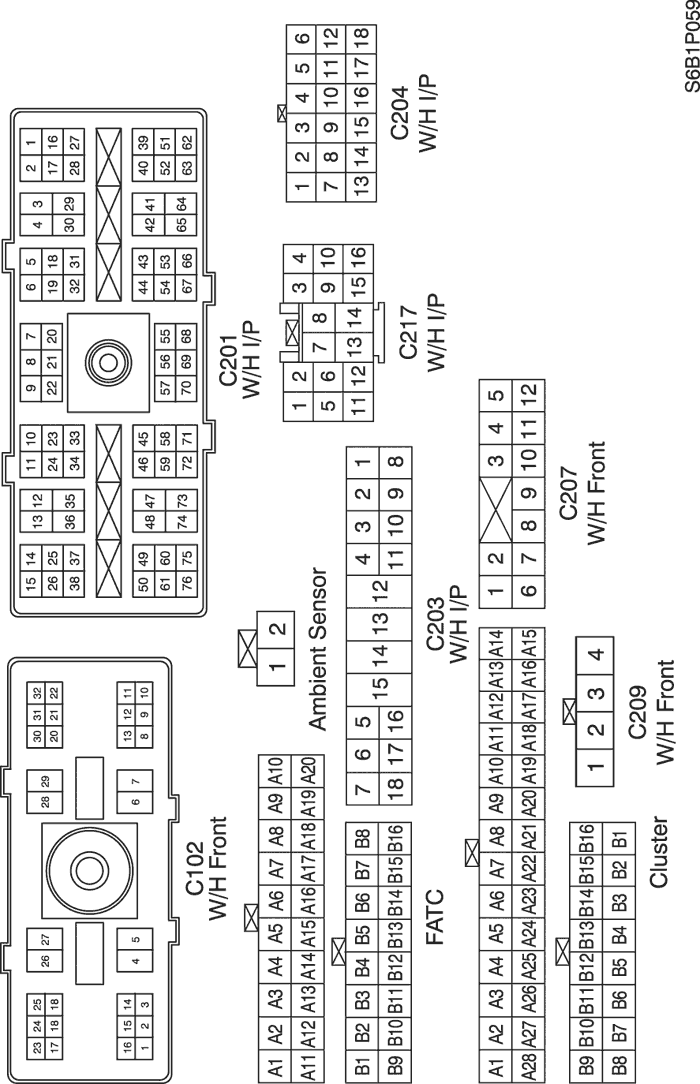

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202
