7. FATC (FULL AUTOMATIC TEMPERATURE CONTROL CIRCUIT)

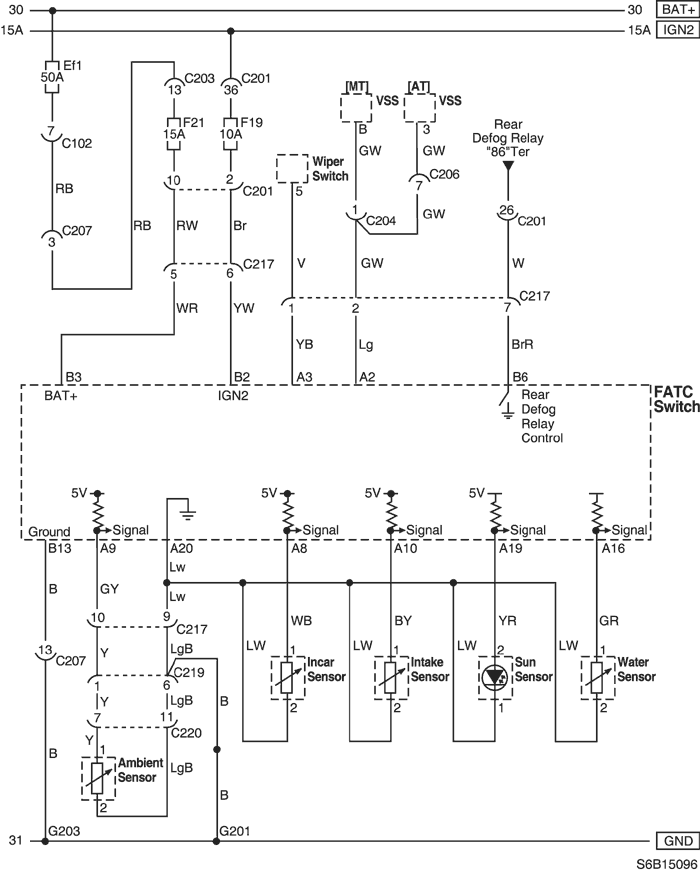

1) POWER, GROUND & SENSOR CIRUCIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Co-Driver Leg Room |
| C206 (10 Pin, White) | TCM - I.P | Below TCM |
| C207 (4 Pin, Black) | Front - I.P | Below I.P Fuse Block |
| C217 (16 Pin, White) | I.P - FATC | Under Blower Motor |
| C219 (8 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C220 (22 Pin, Black) | Front - Floor | Under Left A Pillar |
| G201 | I.P | Upper Mirror Control Switch |
| G203 | I.P | Below Ashtray |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
2) A/C COMPRESSOR CONTROL CIRCUIT : SIRIUS D42
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Co-Driver Leg Room |
| C217 (16 Pin, White) | I.P - FATC | Under Blower Motor |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S201

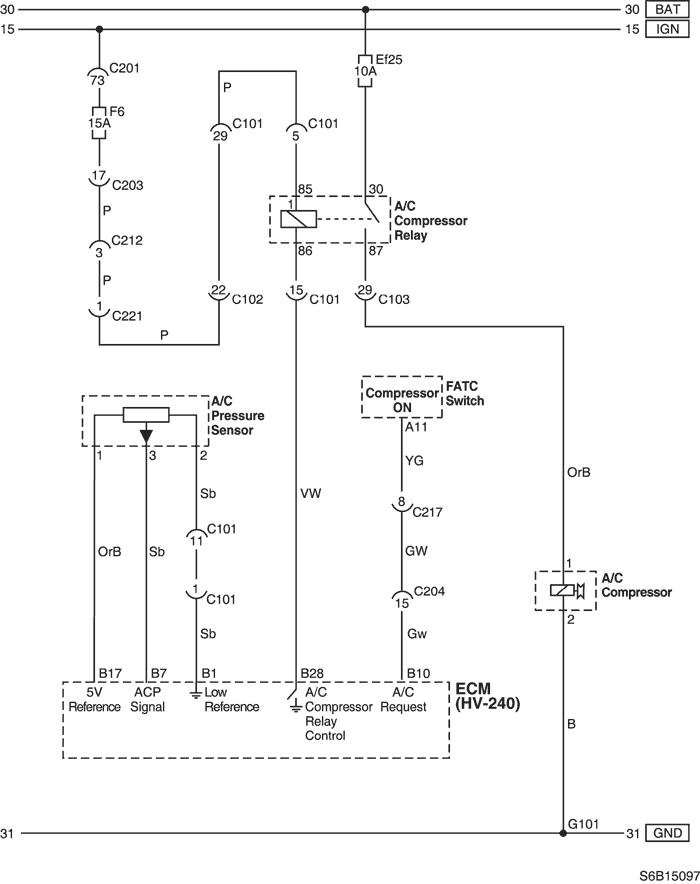

3) A/C COMPRESSOR CONTROL CIRCUIT : HV-240
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Co-Driver Leg Room |
| C212 (15 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C217 (16 Pin, White) | I.P - FATC | Under Blower Motor |
| C221 (11 Pin, Blue) | Front - Floor | Under Left A Pillar |
| G101 | Front | Behind Right Headlamp |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS

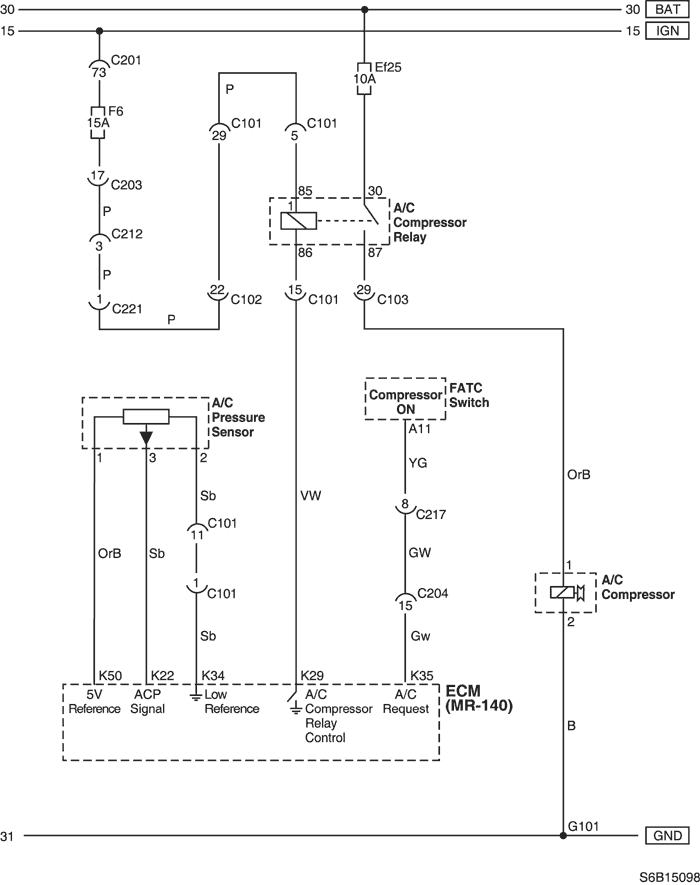

4) A/C COMPRESSOR CONTROL CIRCUIT : MR-140
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C101 (32 Pin, Black) | Engine - Engine Fuse Block | Engine Fuse Block |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Co-Driver Leg Room |
| C212 (15 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C217 (16 Pin, White) | I.P - FATC | Under Blower Motor |
| C221 (11 Pin, Blue) | Front - Floor | Under Left A Pillar |
| G101 | Front | Behind Right Headlamp |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
5) BLOWER AND AIR DELIVERY CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C217 (16 Pin, White) | I.P - FATC | Under Blower Motor |
| G203 | I.P | Below Ashtray |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
