Kalos/Aveo

5. TCM (TRANSMISSION CONTROL MODULE)

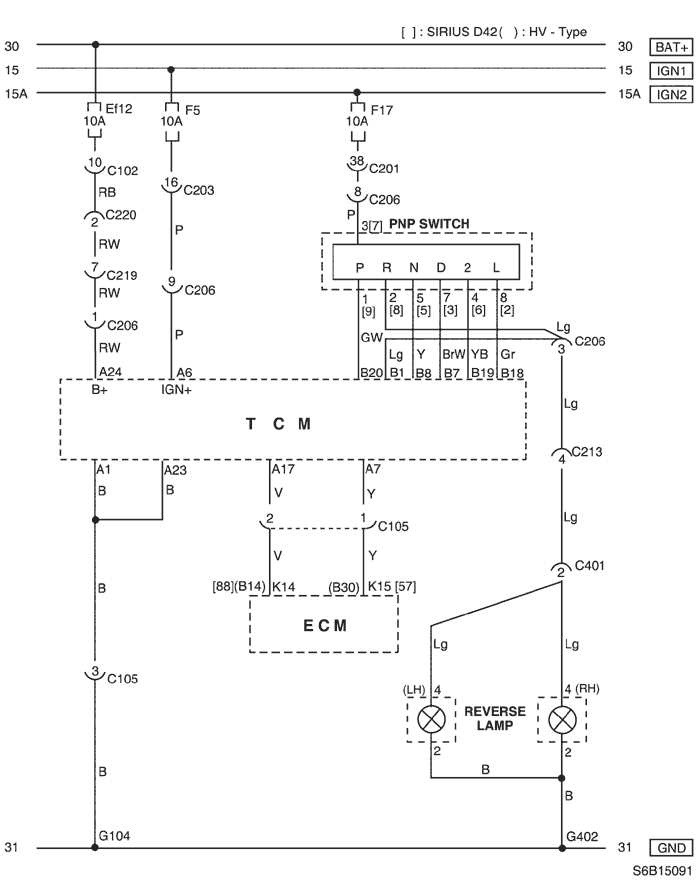

1) POWER SUPPLY, GROUND, PNP SWITCH & ECM CIRCUIT

a. CONNECTOR INFORMATION

CONNECTOR NO (PIN NO, COLOR)	CONNECTING WIRING HARNESS	CONNECTOR POSITION
C102 (32 Pin, Gray)	Front - Engine Fuse Block	Engine Fuse Block
C105 (3 Pin, Gray)	Engine - TCM	Next to EBCM
C201 (76 Pin, Black)	I.P - I.P Fuse Block	I.P Fuse Block
C206 (10 Pin, White)	TCM - I.P	Below TCM
C213 (22 Pin, Yellow)	I.P - Floor	Below I.P Fuse Block
C219 (8 Pin, Blue)	I.P - Floor	Below I.P Fuse Block
C220 (22 Pin, Black)	Front - Floor	Under Left A Pillar
G104	Battery	Next to Start Motor
G402	Trunk	Center Trunk Back Panel

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

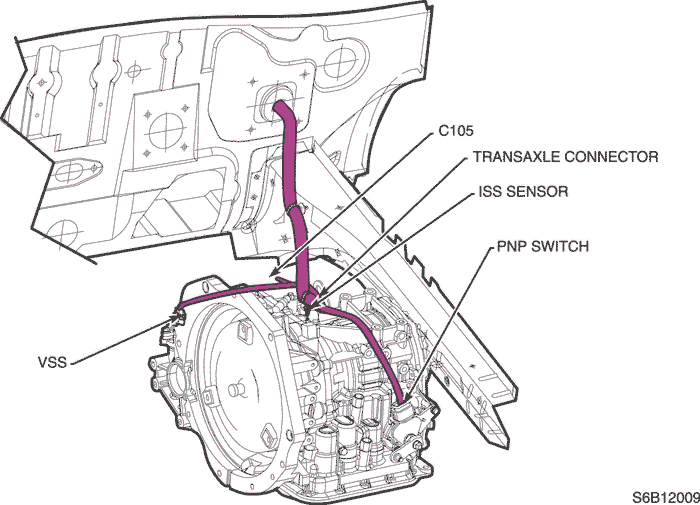

• W/H TCM

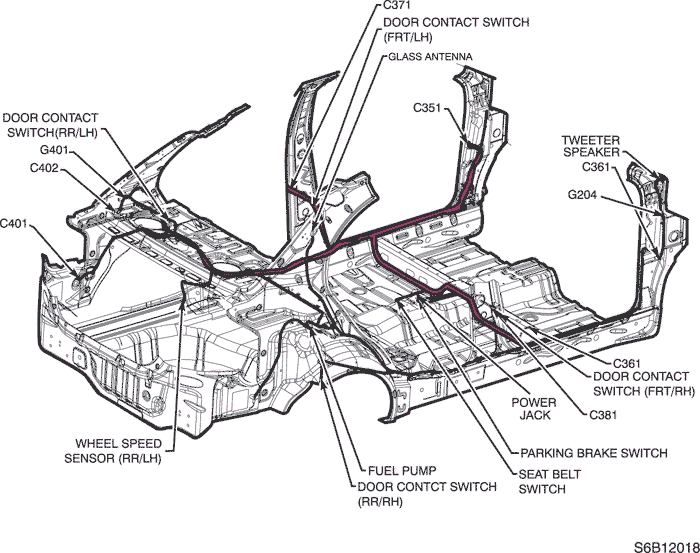

• W/H FLOOR

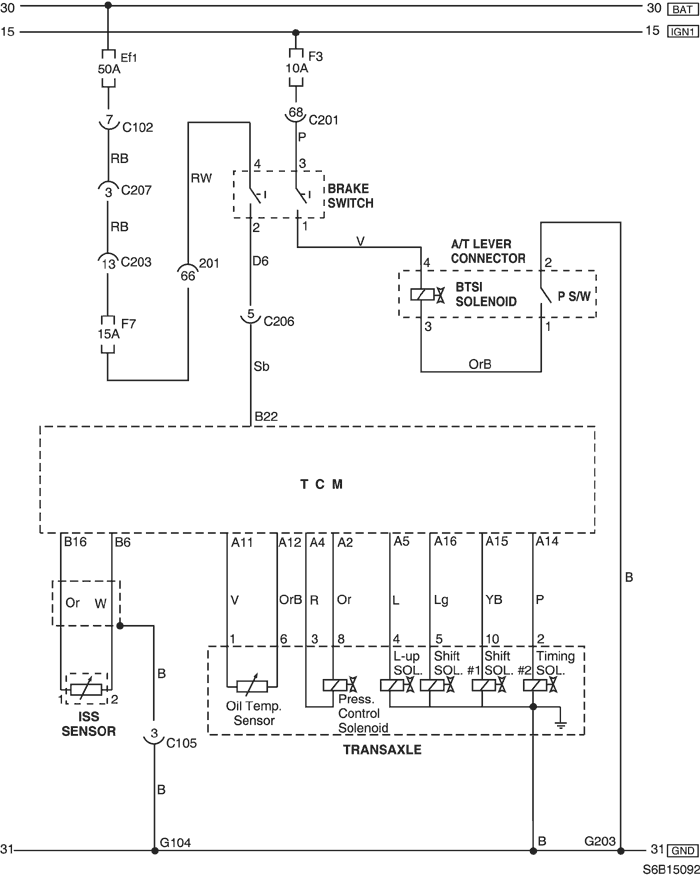

2) SOLENOID, STOP LAMP SWITCH, OIL TEMPERATURE SENSOR & INPUT SHIFT SPEED SENSOR (ISS) CIRCUIT

a. CONNECTOR INFORMATION

CONNECTOR NO (PIN NO, COLOR)	CONNECTING WIRING HARNESS	CONNECTOR POSITION
C102 (32 Pin, Gray)	Front - Engine Fuse Block	Engine Fuse Block
C105 (3 Pin, Gray)	Engine - TCM	Next to EBCM
C201 (76 Pin, Black)	I.P - I.P Fuse Block	I.P Fuse Block
C203 (18 Pin, White)	I.P - I.P Fuse Block	I.P Fuse Block
C207 (4 Pin, Black)	Front - I.P	Below I.P Fuse Block
G104	Battery	Next to Start Motor
G203	I.P	Below Ashtray

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

• W/H TCM

• W/H I/P

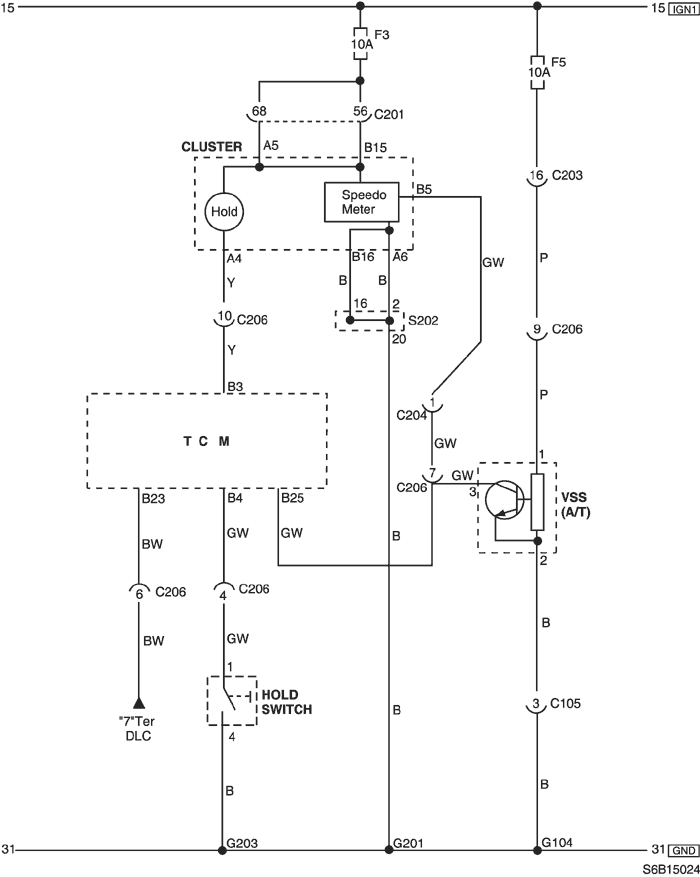

3) VSS & HOLD SWITCH CIRCUIT

a. CONNECTOR INFORMATION

CONNECTOR NO (PIN NO, COLOR)	CONNECTING WIRING HARNESS	CONNECTOR POSITION
C105 (3 Pin, Gray)	Engine - TCM	Next to EBCM
C201 (76 Pin, Black)	I.P - I.P Fuse Block	I.P Fuse Block
C203 (18 Pin, White)	I.P - I.P Fuse Block	I.P Fuse Block
C206 (10 Pin, White)	TCM - I.P	Below TCM
G104	Battery	Next to Start Motor
G201	I.P	Upper Mirror Control Switch
G203	I.P	Below Ashtray

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

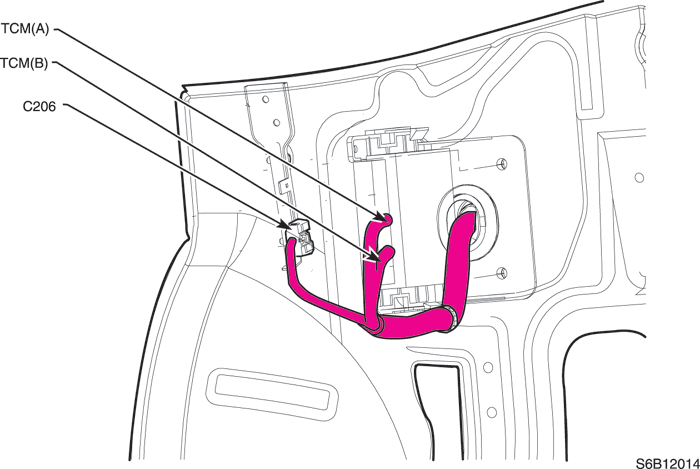

• W/H TCM

• W/H I/P
