Kalos/Aveo

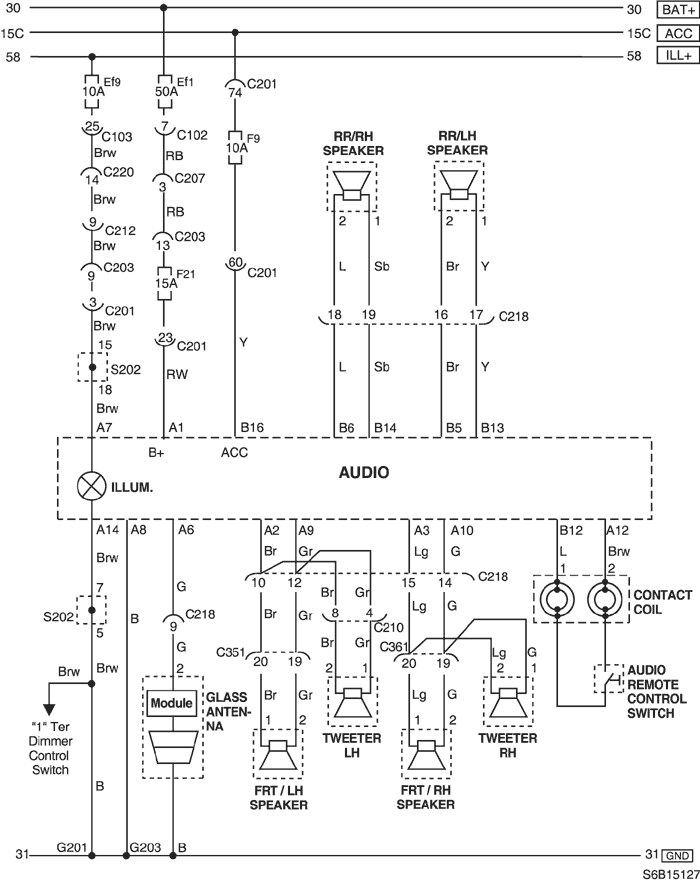

24. AUDIO CIRCUIT

a. CONNECTOR INFORMATION

CONNECTOR NO (PIN NO, COLOR)	CONNECTING WIRING HARNESS	CONNECTOR POSITION
C102 (32 Pin, Gray)	Front - Engine Fuse Block	Engine Fuse Block
C103 (32 Pin, Brown)	Front - Engine Fuse Block	Engine Fuse Block
C201 (76 Pin, Black)	I.P - I.P Fuse Block	I.P Fuse Block
C203 (18 Pin, White)	I.P - I.P Fuse Block	I.P Fuse Block
C207 (4 Pin, Black)	Front - I.P	Below I.P Fuse Block
C212 (15 Pin, Blue)	I.P - Floor	Below I.P Fuse Block
C218 (20 Pin, White)	I.P - Floor	Under Left A Pillar
C220 (22 Pin, Black)	Front - Floor	Under Left A Pillar
C351 (29 Pin, White)	Floor - Front Left Door	Under Left A Pillar
C361 (29 Pin, White)	Floor - Front Right Door	Under Right A Pillar
S202	I.P	Behind I.P Fuse Block
G201	I.P	Upper Mirror Control Switch
G203	I.P	Below Ashtray

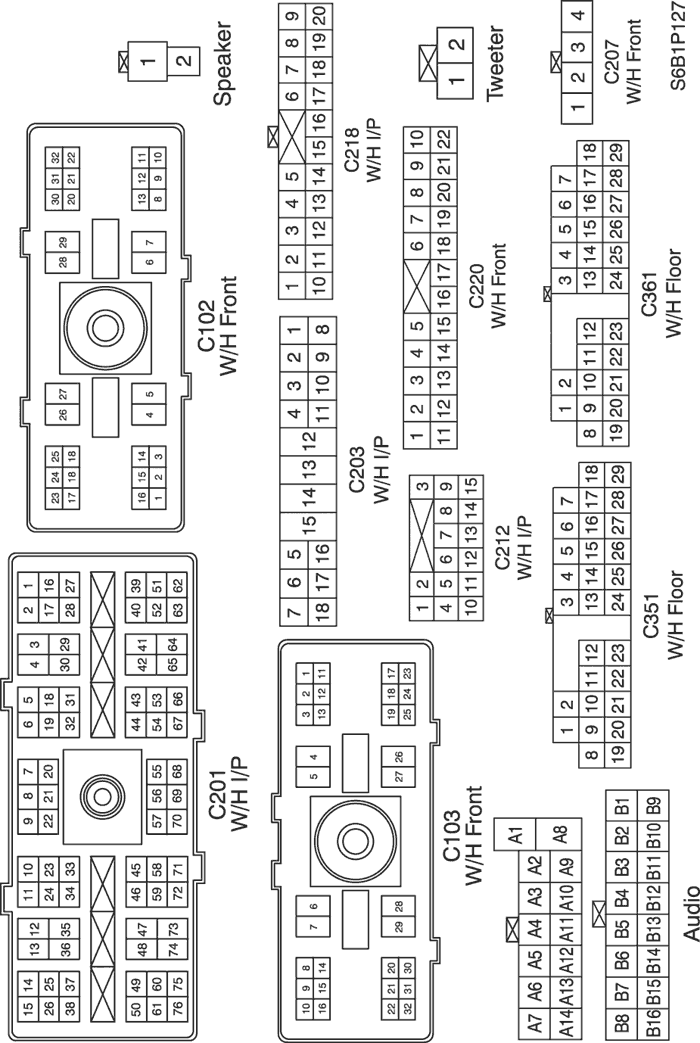

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

c. POSITION OF CONNECTORS AND GROUNDS

• W/H I/P

• W/H FLOOR

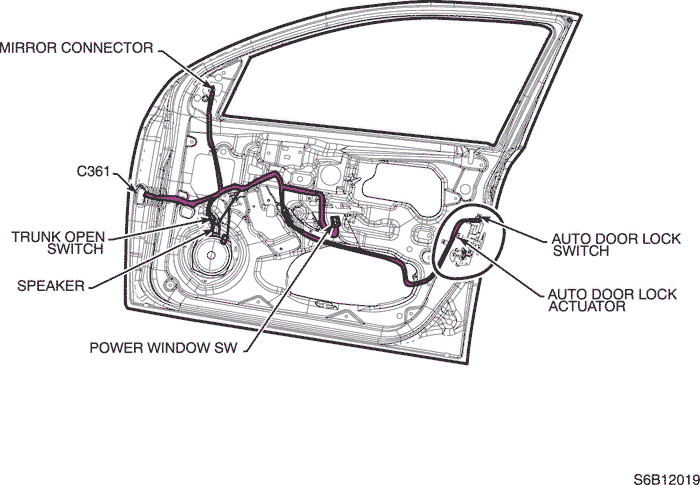

• W/H FRONT DOOR

d. SPLICE PACK

S202
