10. ILLUMINATION CIRCUIT

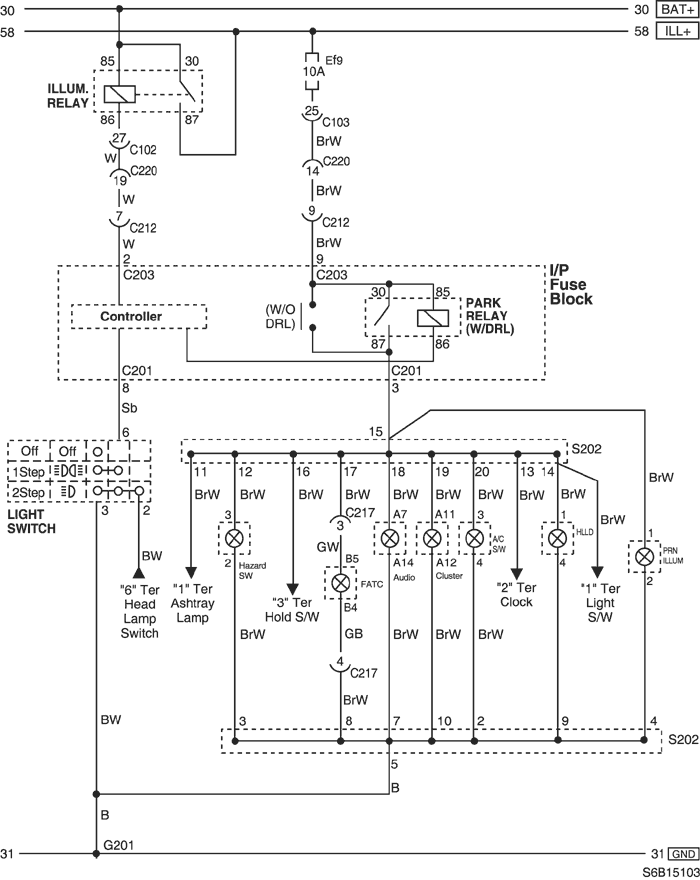

1) ILLUMINATION CIRCUIT-W/O DIMMER CONTROL
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C212 (15 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C220 (22 Pin, Black) | Front - Floor | Under Left A Pillar |
| S202 | I.P | Behind I.P Fuse Block |
| G201 | I.P | Upper Mirror Control Switch |

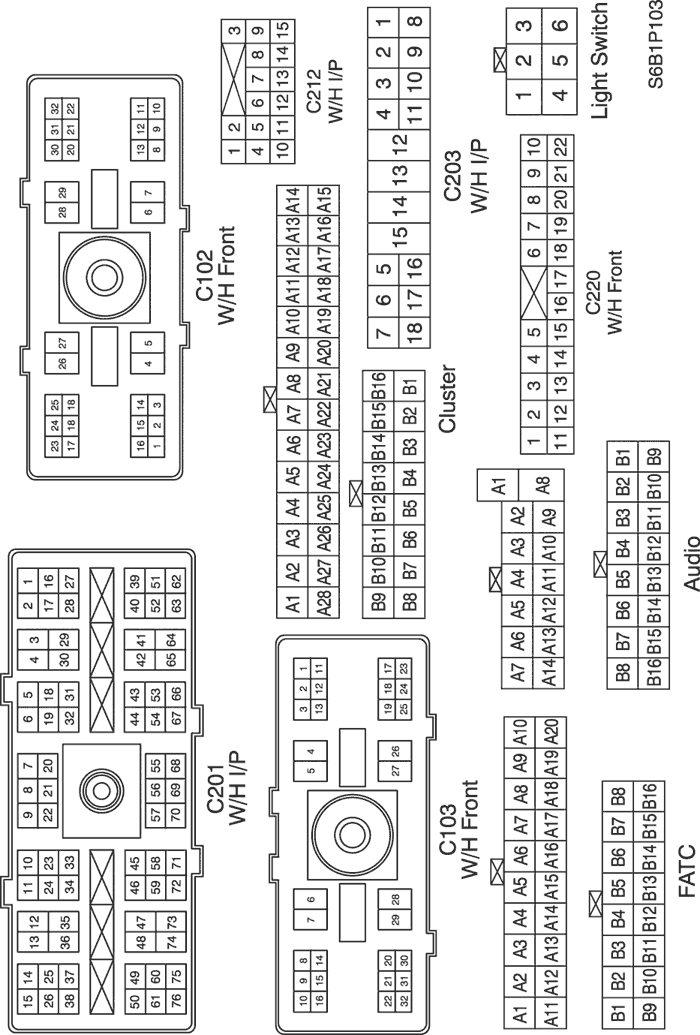

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202

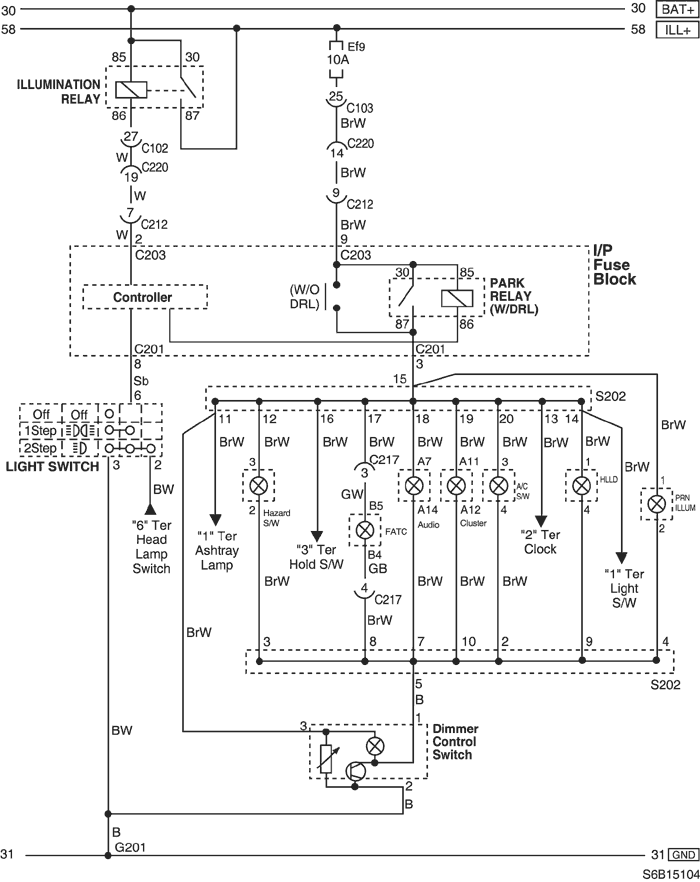

2) ILLUMINATION CIRCUIT-W/ DIMMER CONTROL
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C212 (15 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C220 (22 Pin, Black) | Front - Floor | Under Left A Pillar |
| S202 | I.P | Behind I.P Fuse Block |
| G201 | I.P | Upper Mirror Control Switch |

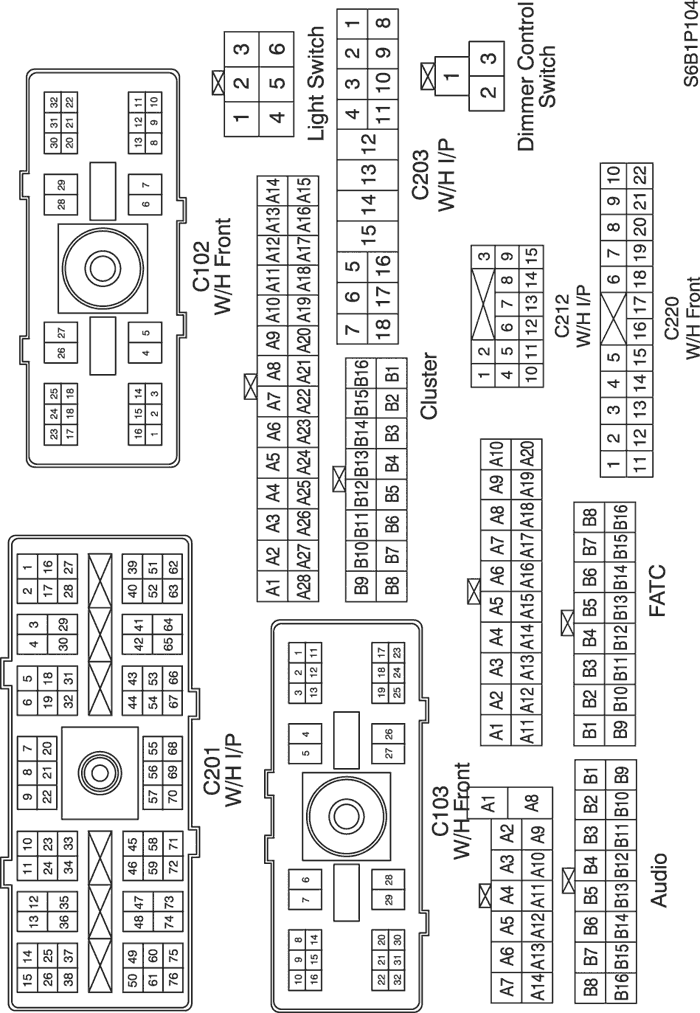

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
d. SPLICE PACK
S202

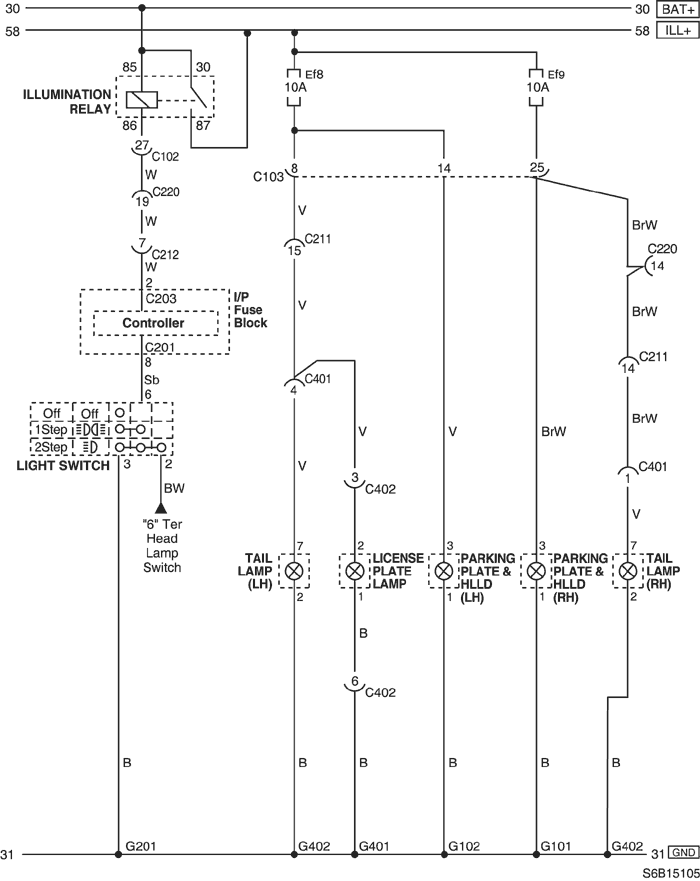

3) LAMP (LICENSE PLATE & W/ FRONT/REAR PARKING) CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C103 (32 Pin, Brown) | Front - Engine Fuse Block | Engine Fuse Block |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C211 (15 Pin, Yellow) | Front - Floor | Under Left A Pillar |
| C212 (15 Pin, Blue) | I.P - Floor | Below I.P Fuse Block |
| C220 (22 Pin, Black) | Front - Floor | Under Left A Pillar |
| C401 (8 Pin, White) | Floor - Trunk | Behind Left Wheel House Trim |
| C402 (6 Pin, White) | Trunk Lid - Floor | Below Back Shelf Panel |
| G101 | Front | Behind Right Headlamp |
| G102 | Front | Behind Left Headlamp |
| G201 | I.P | Upper Mirror Control Switch |
| G401 | Floor | Upper Back Shelf Panel |
| G402 | Trunk | Center Trunk Back Panel |

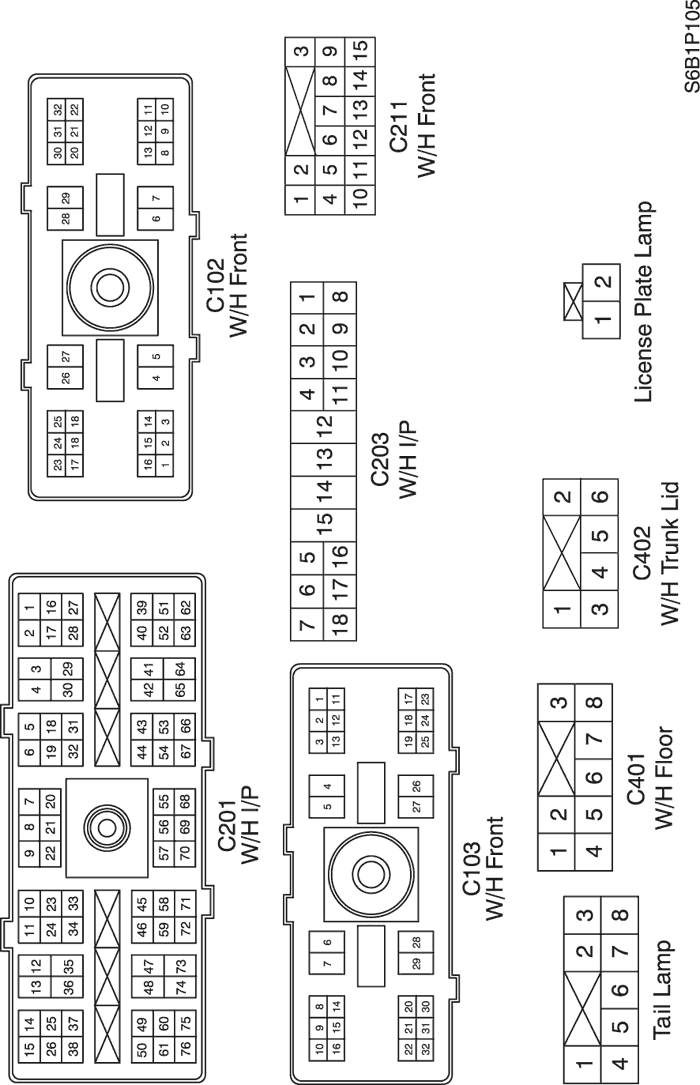

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
