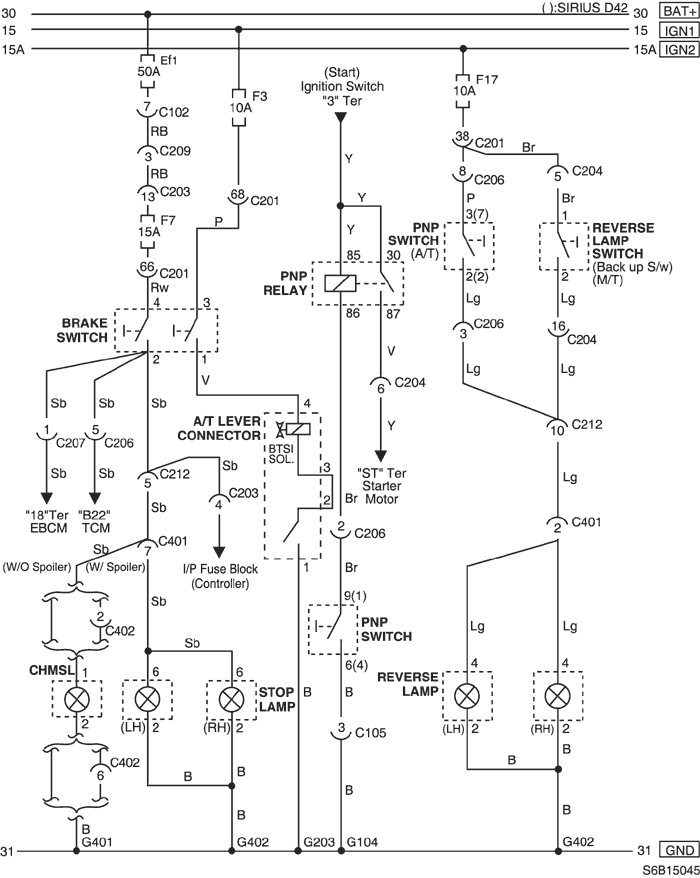

14. STOP LAMP, CENTER HIGH MOUNT STOP LAMP (CHMSL) & REVERSE LAMP CIRCUIT
a. CONNECTOR INFORMATION
CONNECTOR NO
(PIN NO, COLOR) | CONNECTING WIRING HARNESS | CONNECTOR POSITION |
| C102 (32 Pin, Gray) | Front - Engine Fuse Block | Engine Fuse Block |
| C105 (3 Pin, Gray) | Engine - TCM | Next to EBCM |
| C201 (76 Pin, Black) | I.P - I.P Fuse Block | I.P Fuse Block |
| C203 (18 Pin, White) | I.P - I.P Fuse Block | I.P Fuse Block |
| C204 (18 Pin, Gray) | I.P - Engine | Upper Driver Leg Room |
| C206 (10 Pin, White) | TCM - I.P | Below TCM |
| C207 (12 Pin, Gray) | Front - I.P | Below I.P Fuse Block |
| C209 (4 Pin, White) | Front - I.P | Front TCM |
| C212 (11 Pin, Blue) | I.P - Floor | Under Left A Pillar |
| C401 (8 Pin, White) | Floor - Trunk | Behind Left Wheel House Trim |
| C402 (6 Pin, White) | Trunk Lid - Floor | Below Back Shelf Panel |
| G104 | Battery | Next to Start Motor |
| G203 | I.P | Below Ashtray |
| G401 | Floor | Upper Back Shelf Panel |
| G402 | Trunk | Center Trunk Back Panel |
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
c. POSITION OF CONNECTORS AND GROUNDS
